The Premium Weighted Intake Rod Pump Gas Separator is similar to our Rod Pump
Gas Separator with an added feature that allows it to be installed in highly deviated

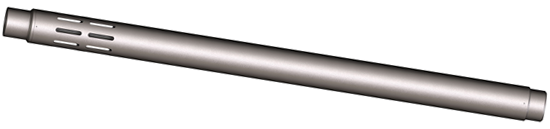

Rod Pumping wells. The Weighted Intake Rod Pump Gas Separator has slots cut into
the top of the housing rather than top sub ports and these slots allow free inflow of
the fluid mixture and exhaust of the separated gas.
Installed on the flow tube inside the housing is a weighted intake sub that orients the
fluid intake to the bottom of the housing, ensuring only fluids are drawn into the
pump, regardless of the gas separator angle or position.
Where higher production volumes are required, we also manufacture an “Extended
Volume” Weighted Intake Rod Pump Gas Separator. Also, the Weighted Intake Rod
Pump Gas Separator can have either a bull plug on the bottom for typical installs or
with a special coupling that allows a 6’ housing (or a length of tubing) to be attached
to the bottom of the tool to act as a cellar for debris such as sand or coal fines.
As with our Rod Pump Gas Separators, the Weighted Intake Rod Pump Gas Separator
is also offered with Stainless Steel Housings as well as regular steel. The Stainless
Steel housing offers extra protection in highly corrosive environments.
|
